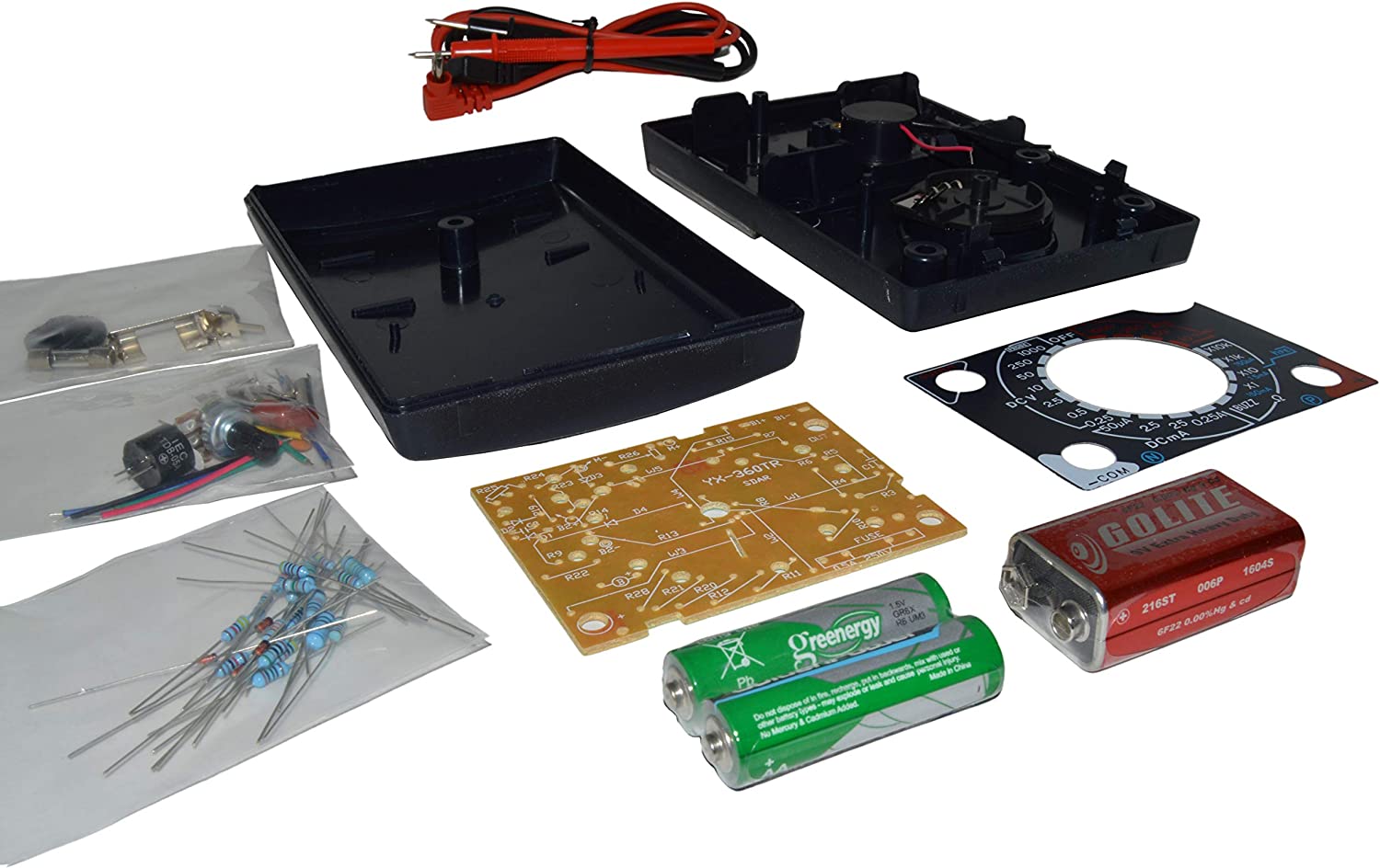

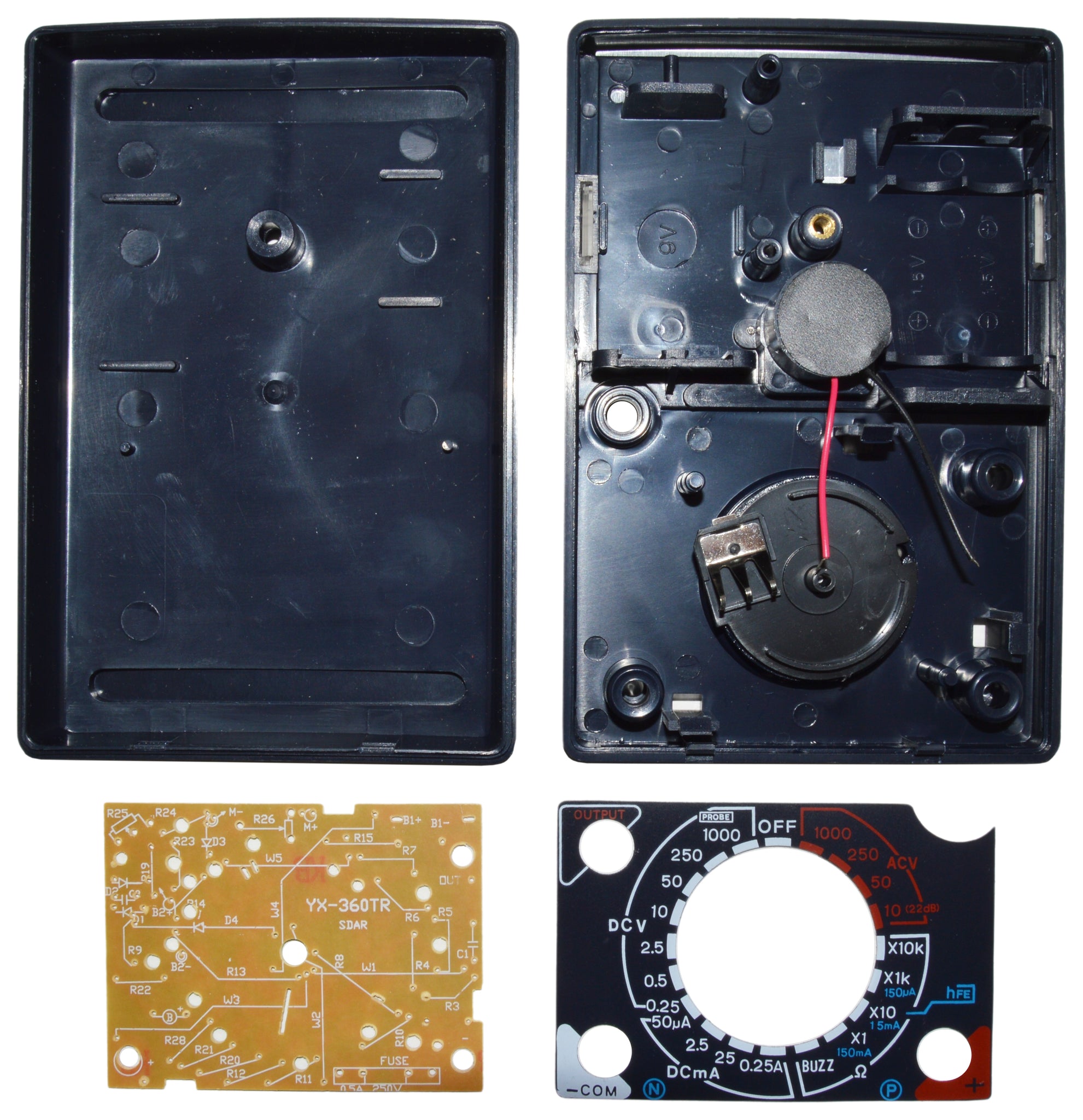

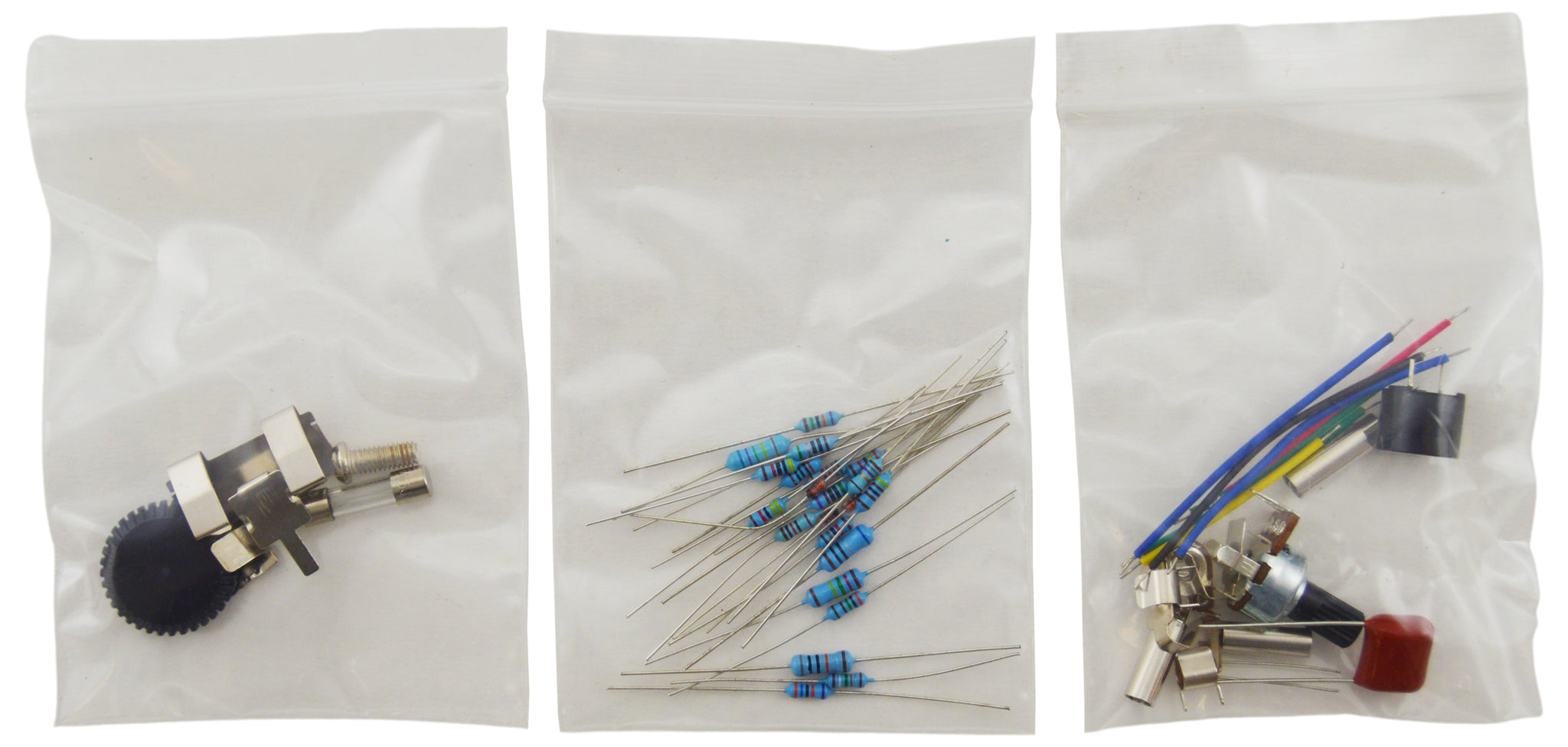

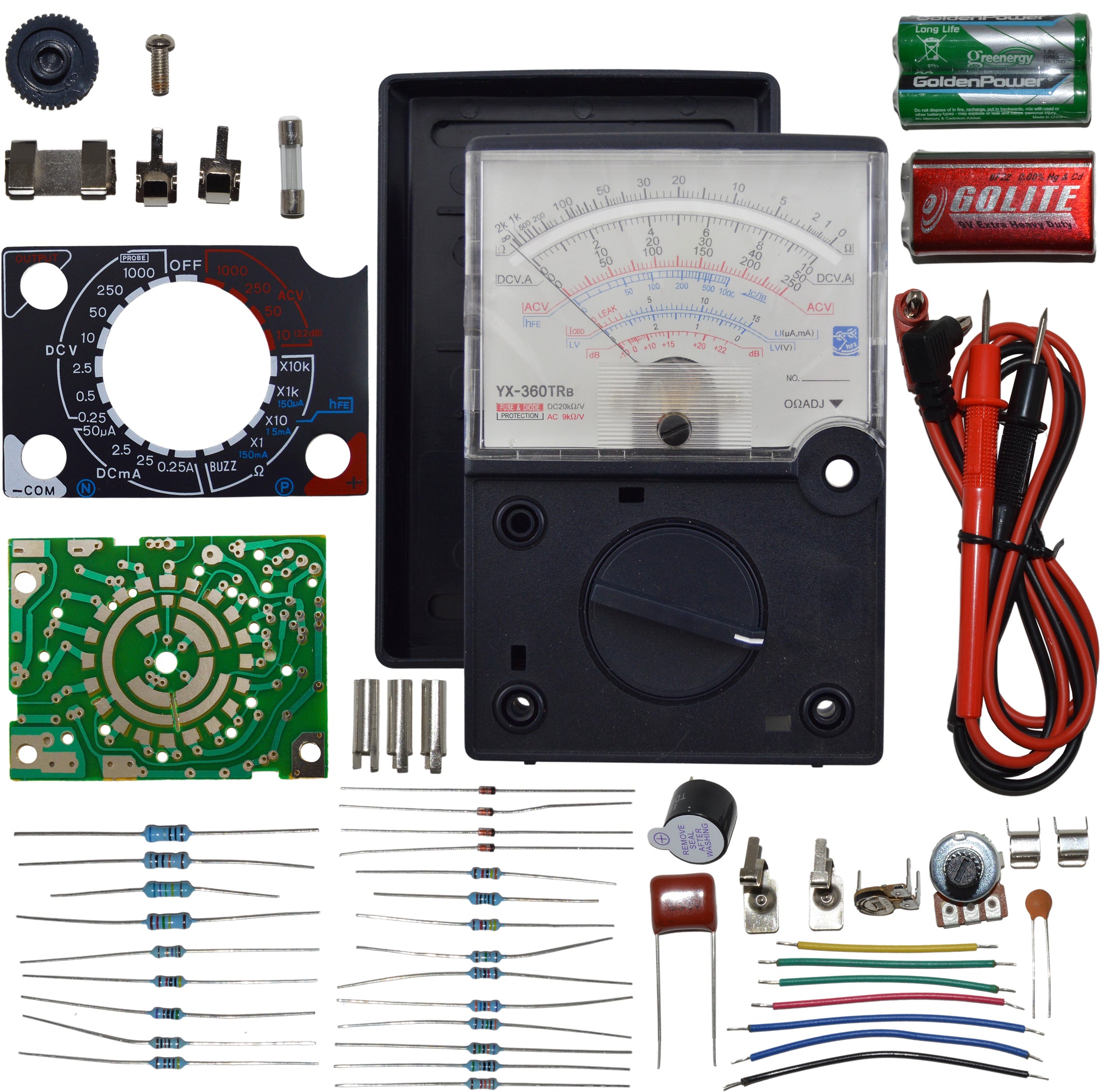

- Build your own quality, high performance analog meter with this soldering practice kit. An assembly manual is included; however, some ingenuity is required to make all pieces fit!
- NOTE: This advanced skill level kit requires assembly with a soldering iron. Soldering iron and solder are not included.
- Once assembled, it measures AC and DC voltage and current, resistance, audion signal dBm, transistor gain (hfe), and checks diode continuity. NOTE: hFE measurement requires an hFE connector, not included.
- Measures 5.82" x 3.94" x 1.41"
- 9V and 2x AA batteries are included

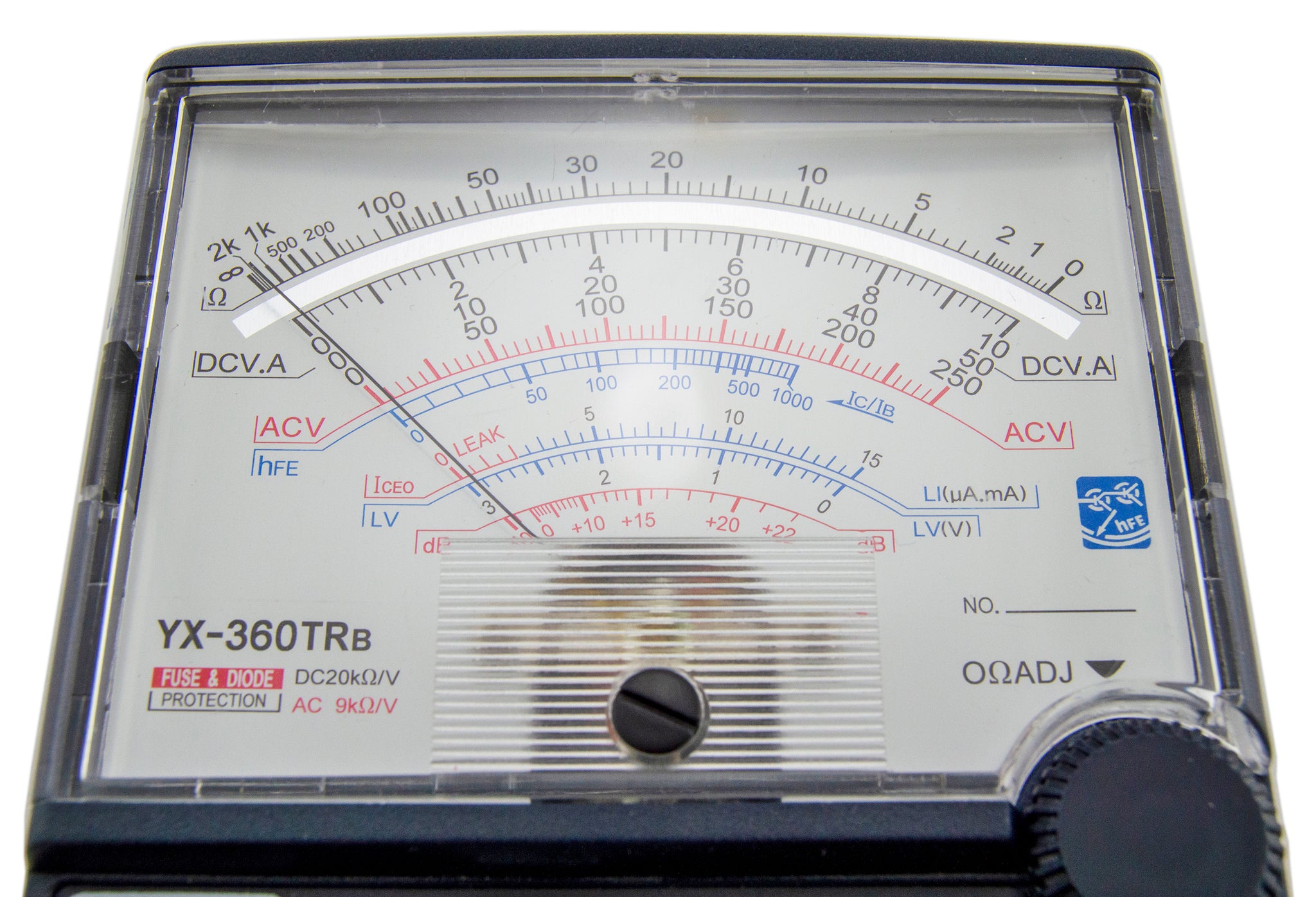

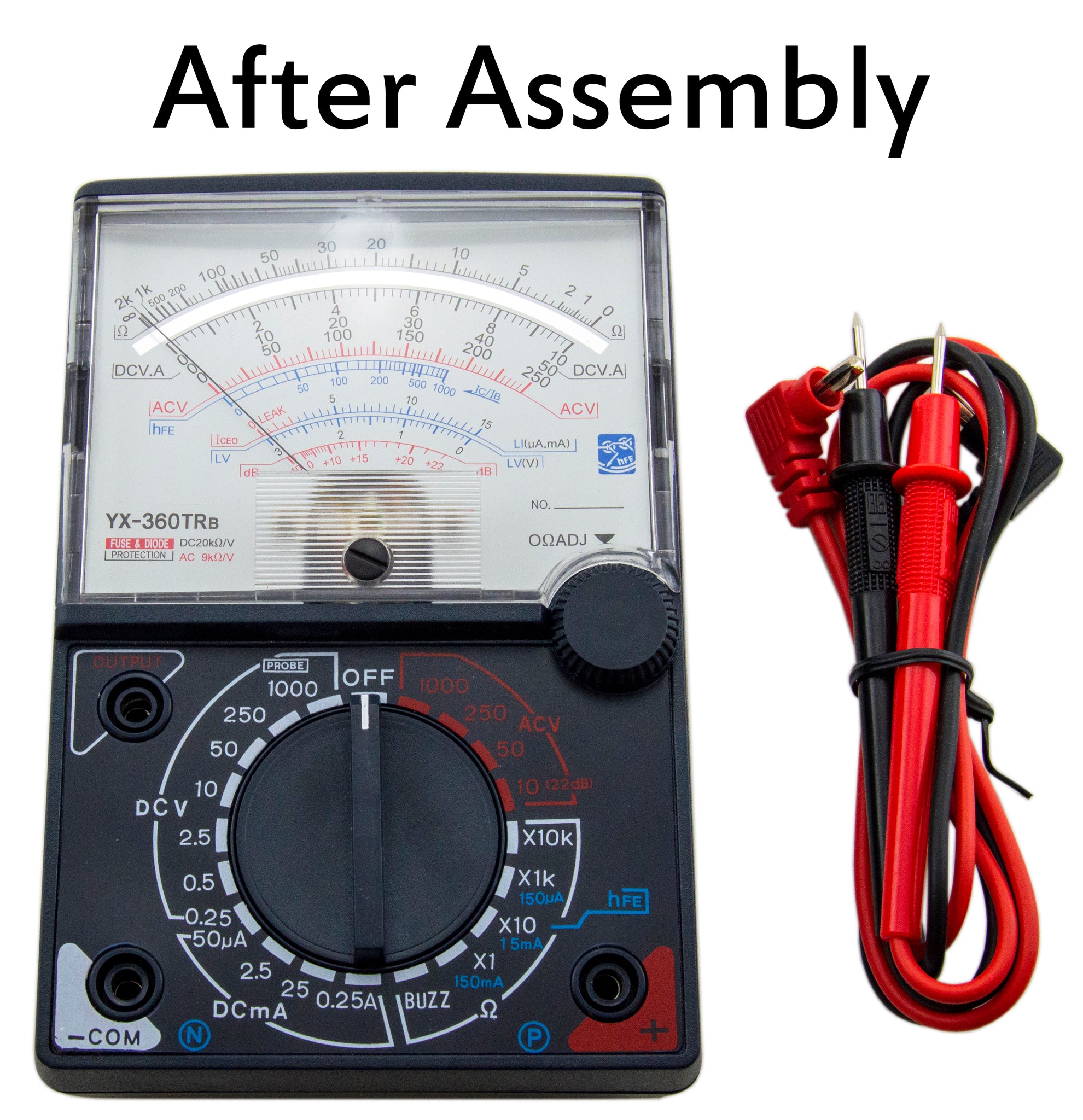

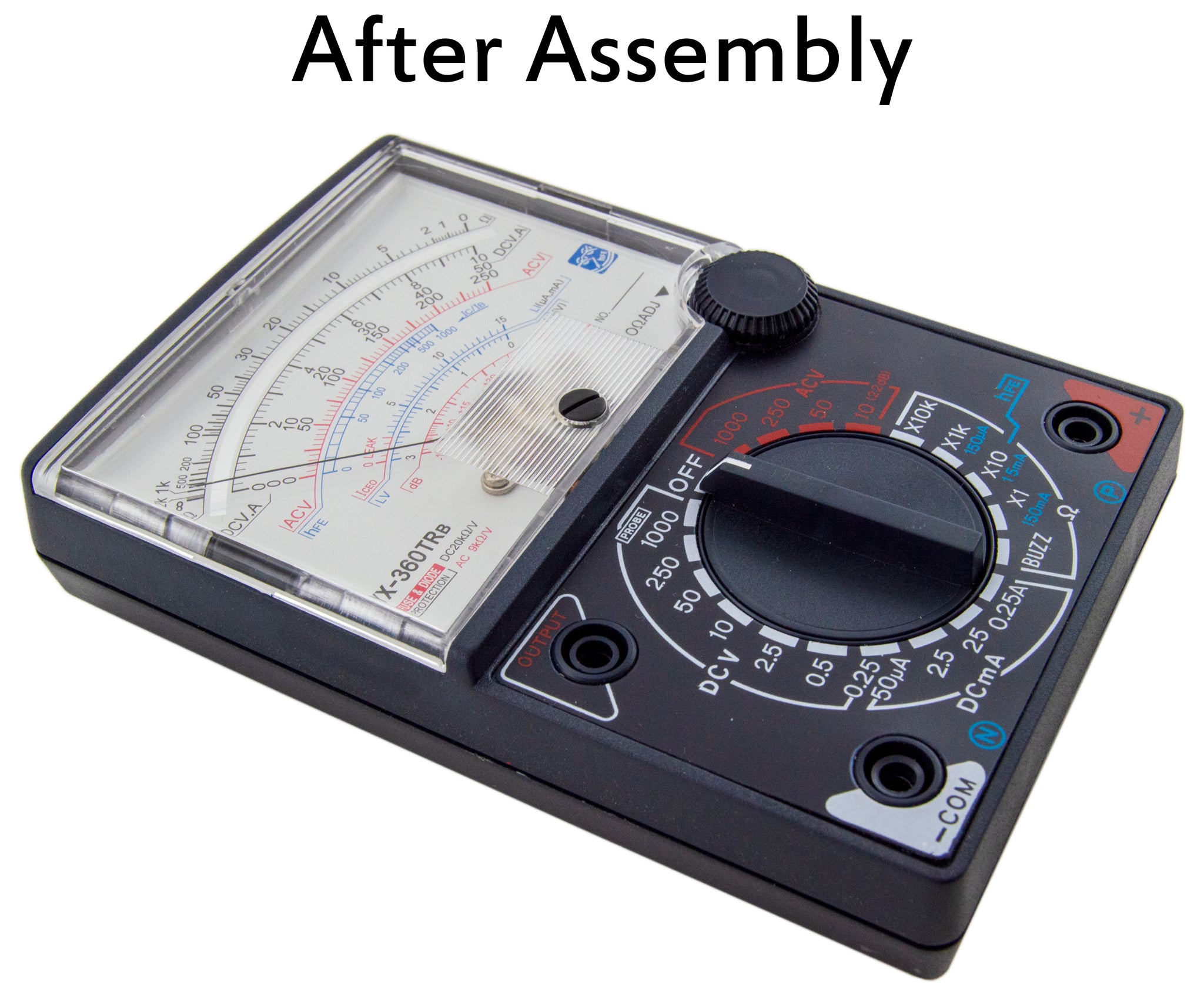

The AMK-200 analog multitester is a compact, portable VOM (Volt-OHM-Milliamp) meter in kit form. An English assembly manual is included; however, some ingenuity is required to make all pieces fit! It features 20K ohm/volt input resistance on the DC voltage scales to minimize circuit loading and improve accuracy. The 50 micro-amp meter movement is diode protected and allows a 0.1 volt full-scale range for low voltage level measurements. The AMK-200 will measure AC and DC voltage and current, resistance, and audion signal dBm. In addition, the AMK-200 can measure transistor gain (hfe) and check diode continuity.
Specifications:
DC Volts: 0 to 2.5V, 10V, 50V, 250V, 1,000V.
AC Volts: 0 to 10V, 50V, 250V, 1,000V.
DC Current: 0 to 5mA, 50mA, 500mA, 10A.
Resistance: X1, x10, X1K.
Sensitivity: 20,000 ohm/V DC and 8,000 ohm/V AC.
DC Voltage Range: 0.1/0.5/2.5/10/50/250/1000V
AC Voltage Range: 10/50/250/1000V
DC Current Range: 50µ/2.5m/25m/0.25A
Resistance Range: Rx1x10x1kx10kΩ
Transistor Test Range: 0-1000
hFE Range: 0-1000V (hFE measurement requires an hFE connector, not included)
Decible Range: ﹣10-﹢22dB
DCV Sensitivity Range: 20kΩ/V
ACV Sensitivity Range: 9kΩ/V
Size: 148x100x36mm
Weight: 280g
9V and 2x AA batteries are included.
