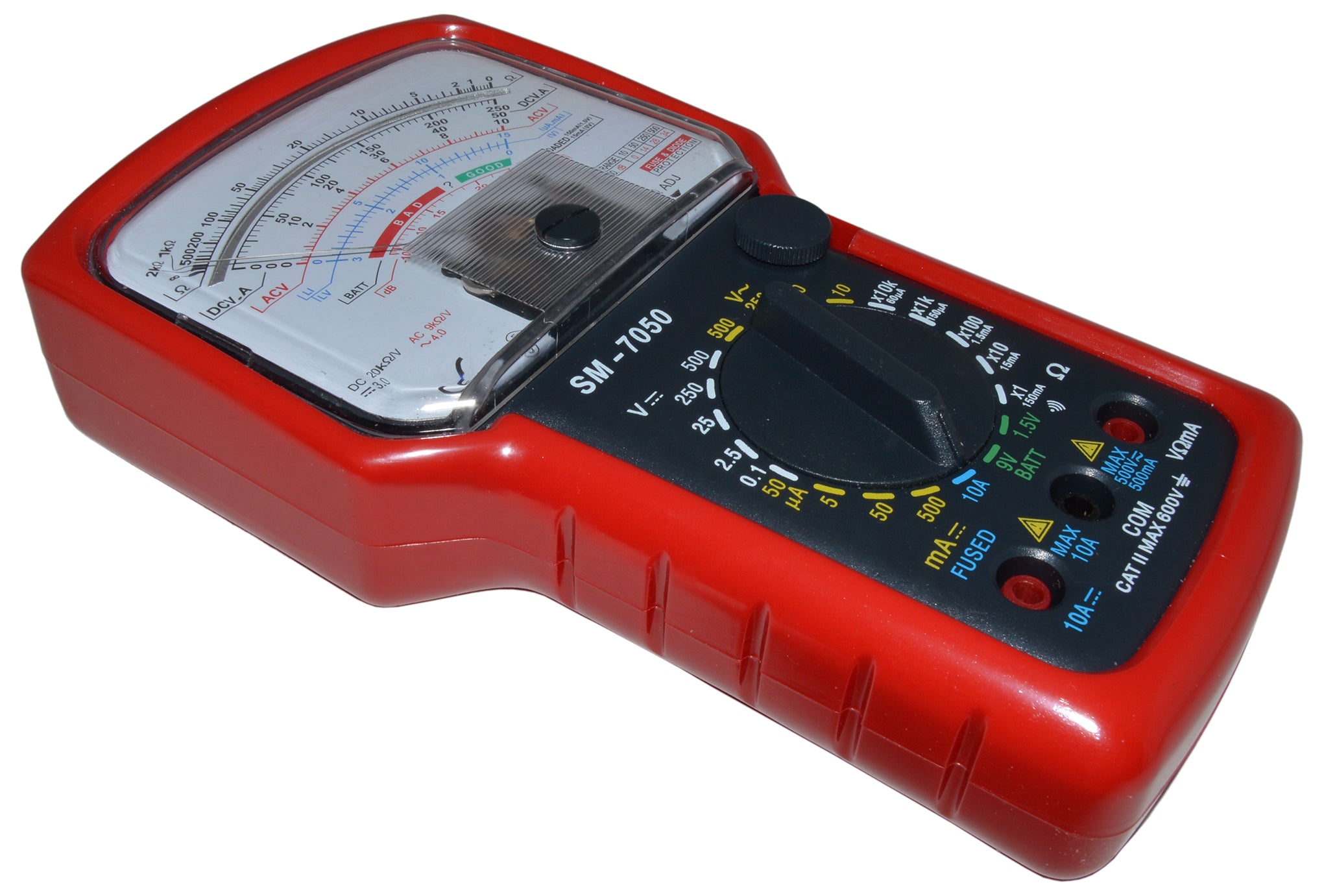

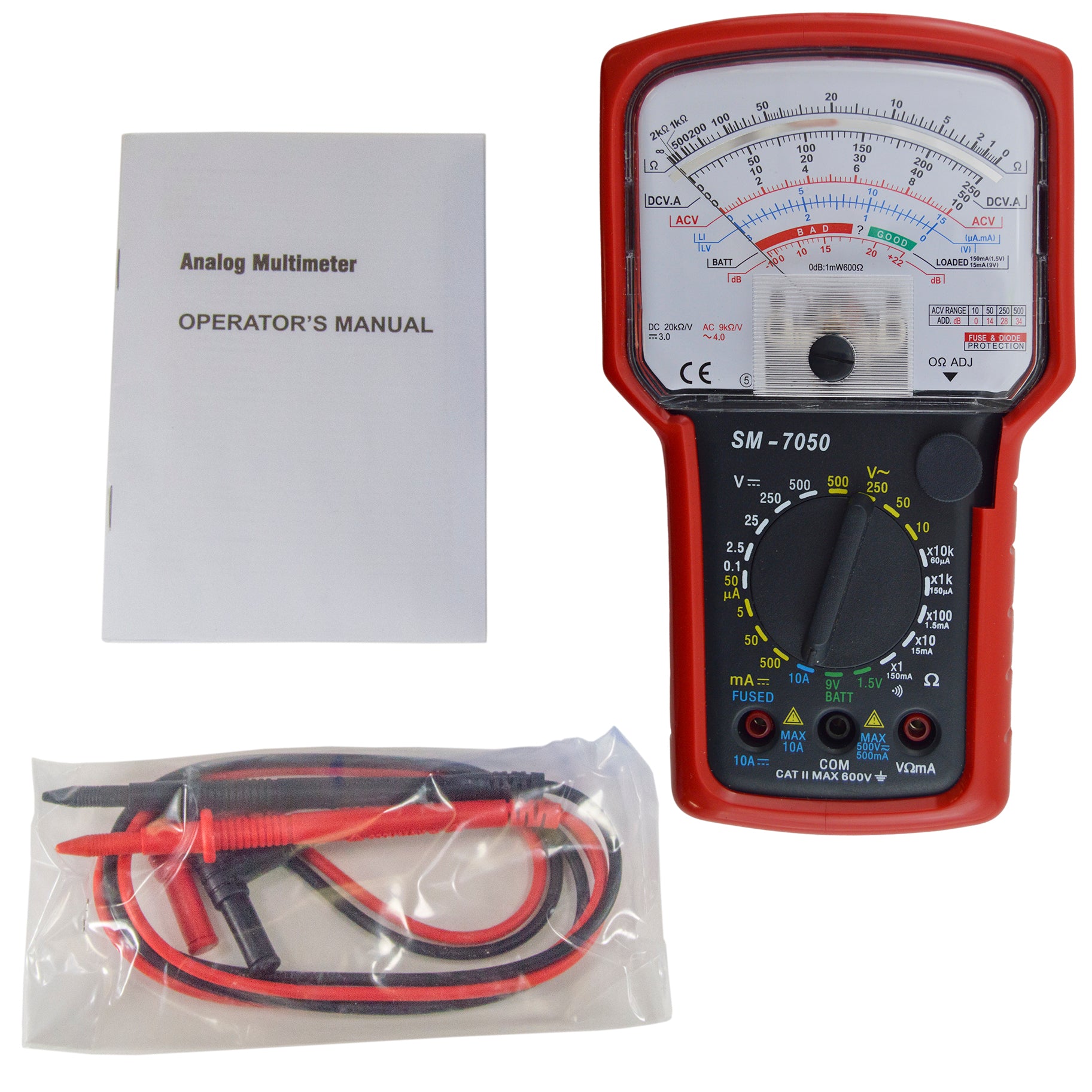

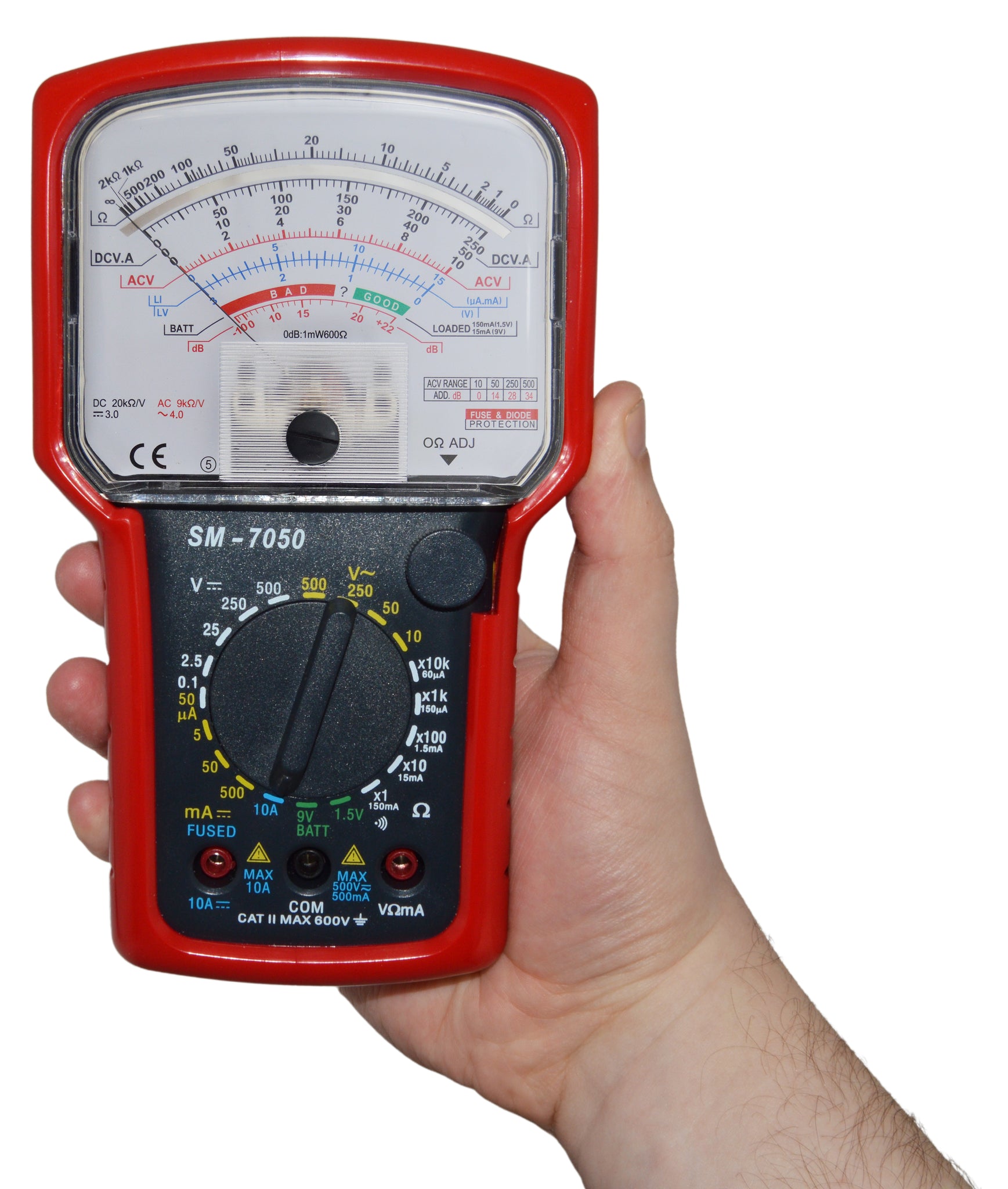

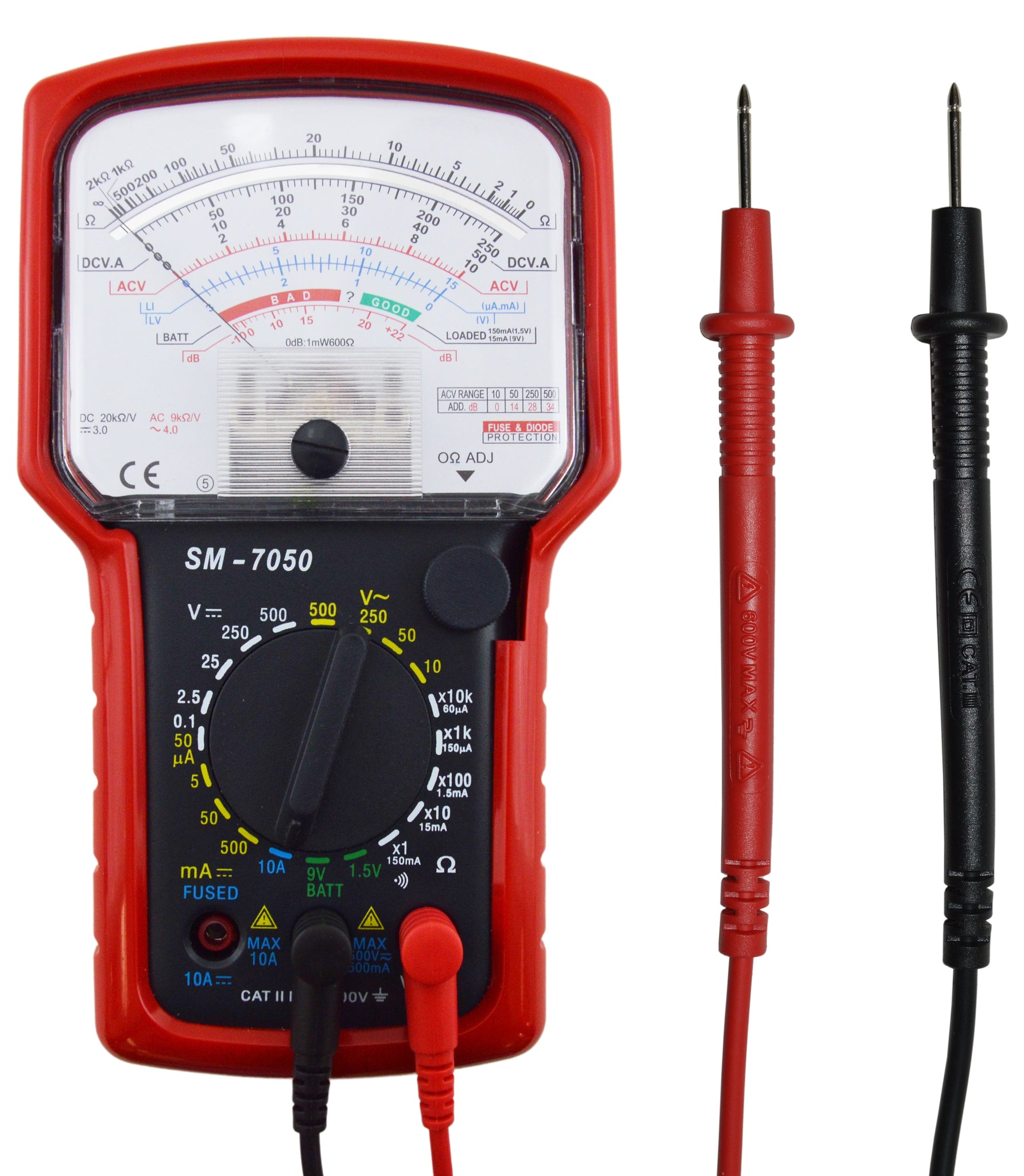

Analog Multimeter, 20-range AC/DC general purpose, 7 functions

01AMA7050

Regular price: $44.99
Sale price: $44.99
Regular price
Unit price: per

Shipping calculated at checkout.

7 functions 20 ranges
DC Voltage: 0~0.1/2.5/25/250/500V (20k ohm /V) +/- 3% f.s.
AC Voltage: 0~10/50/250/500V (9k ohm /V) +/- 4% f.s
DC Current: 0~50u/5m/50m/500m/10A +/- 3% f.s
Resistance: 0~2k/20k/200k/2M/20M ohm +/- 3% full arc (Arc length: 75.3mm)

This analog multimeter has 7 functions 20 ranges. It features high sensitivity and accuracy.

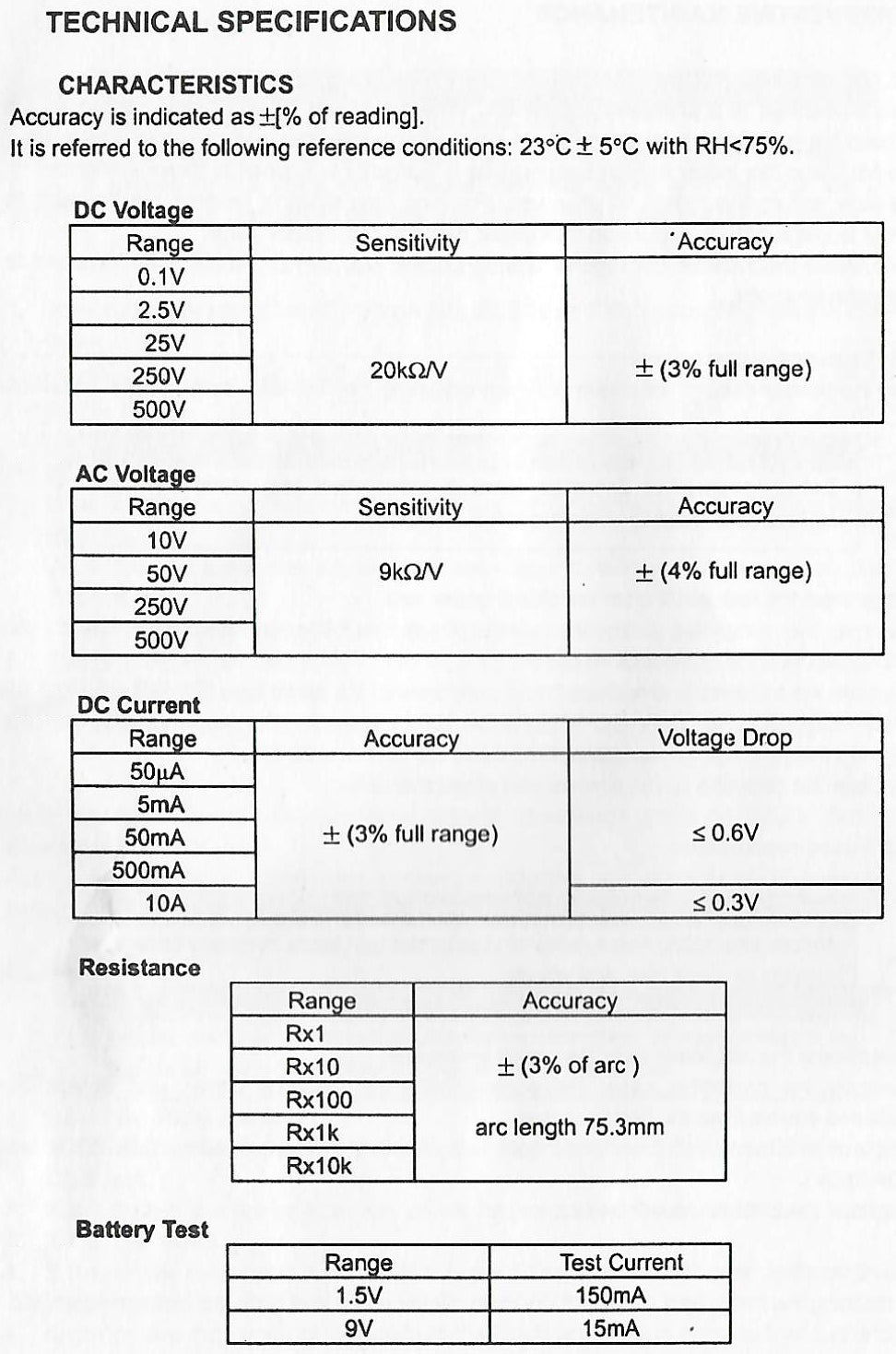

Specifications:

DC Voltage: 0~0.1/2.5/25/250/500V (20k ohm /V) +/- 3% f.s.
AC Voltage: 0~10/50/250/500V (9k ohm /V) +/- 4% f.s.
DC Current: 0~50u/5m/50m/500m/10A +/- 3% f.s.
Resistance: 0~2k/20k/200k/2M/20M ohm +/- 3% full arc (Arc length: 75.3mm).
Continuity Buzzer: R X 1 range 0~30W sound.
Battery Test: 1.5V (150mA)/9V (10mA).
Decibel: -10 ~56 dB (0dB: 0.775V 1mW 600W).
Power Source: 9V X 1, 1.5V X 2.
Fuse: 0.5A/250V 5 X 20mm fast acting 10A/250V 5 X 20mm fast acting.

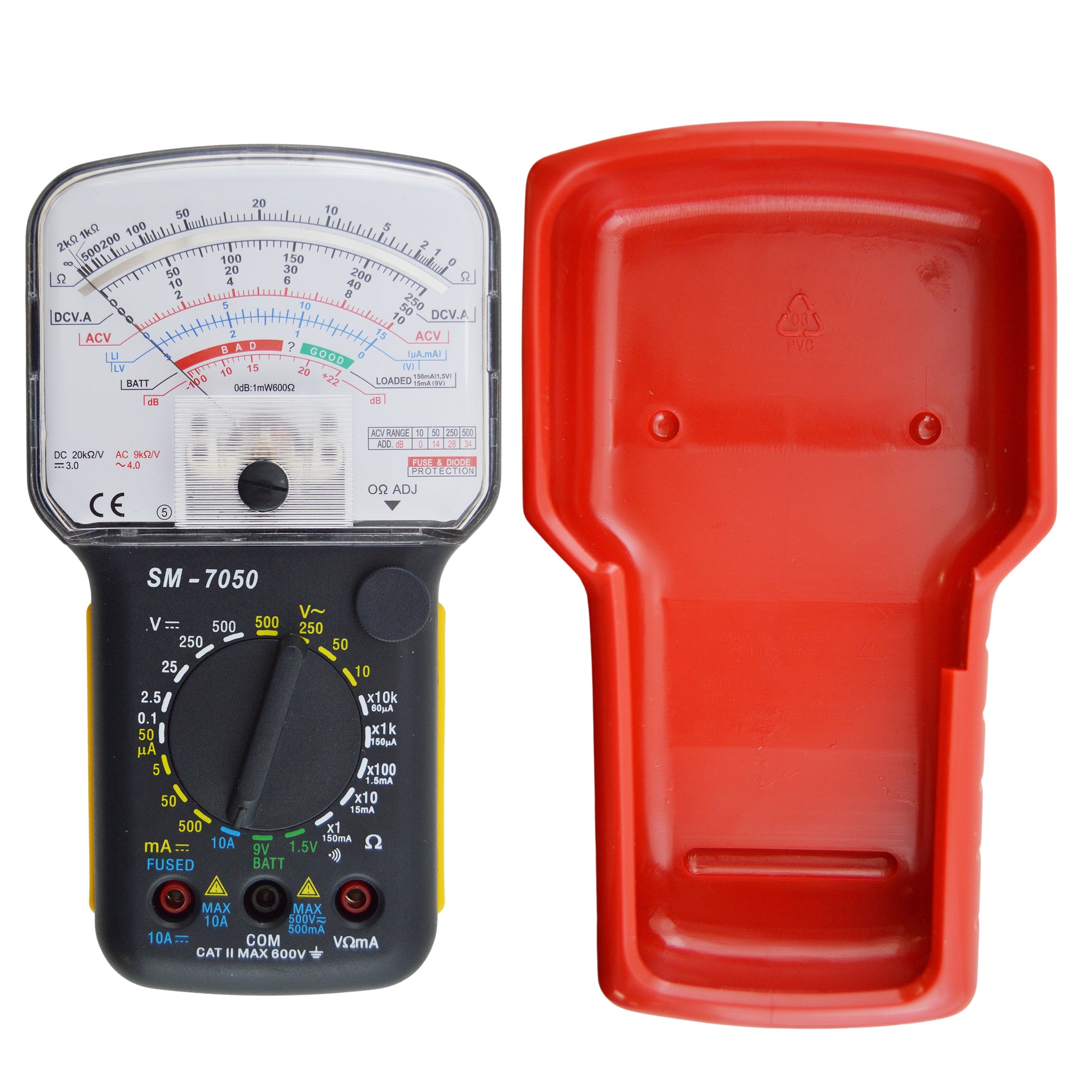

Size: 7.5" x 4.3" x 2" (including holster) Weight: 1 lb.
